Rethinking actuator design for dexterous end effectors

Introduction

• Dexterous hands hard-couple actuators to manipulators — no mechanical separation point, whether motors sit in the palm (Allegro) or remotely (Shadow).
• One worn tendon or damaged finger means full disassembly: tedious re-routing, hours of downtime.
• Manipulators wear out faster than motors, yet motors — 60–70% of BOM cost — stay locked to a single hand.
• Goal: an actuator–coupler architecture that decouples the two, for repairability (minutes, not hours), replaceability (swap, don't rebuild), and reconfigurability (one actuator, many end effectors).

Methods

• Requirements: ≥100 N tendon force, 4 channels, continuous duty, ≤1000 g, ≤10 min re-string, tool-less hot-swap.
• Actuator: spring-preloaded spool with a tendon-driven tensioner slider — motor controls tendon length, spring controls tension, eliminating slack on direction reversals.
• Coupler: passive sliding coupler — pulley routing maintains tendon continuity under axial motion, crimp terminations transfer load, and slider-in-channel geometry prevents off-axis loading.

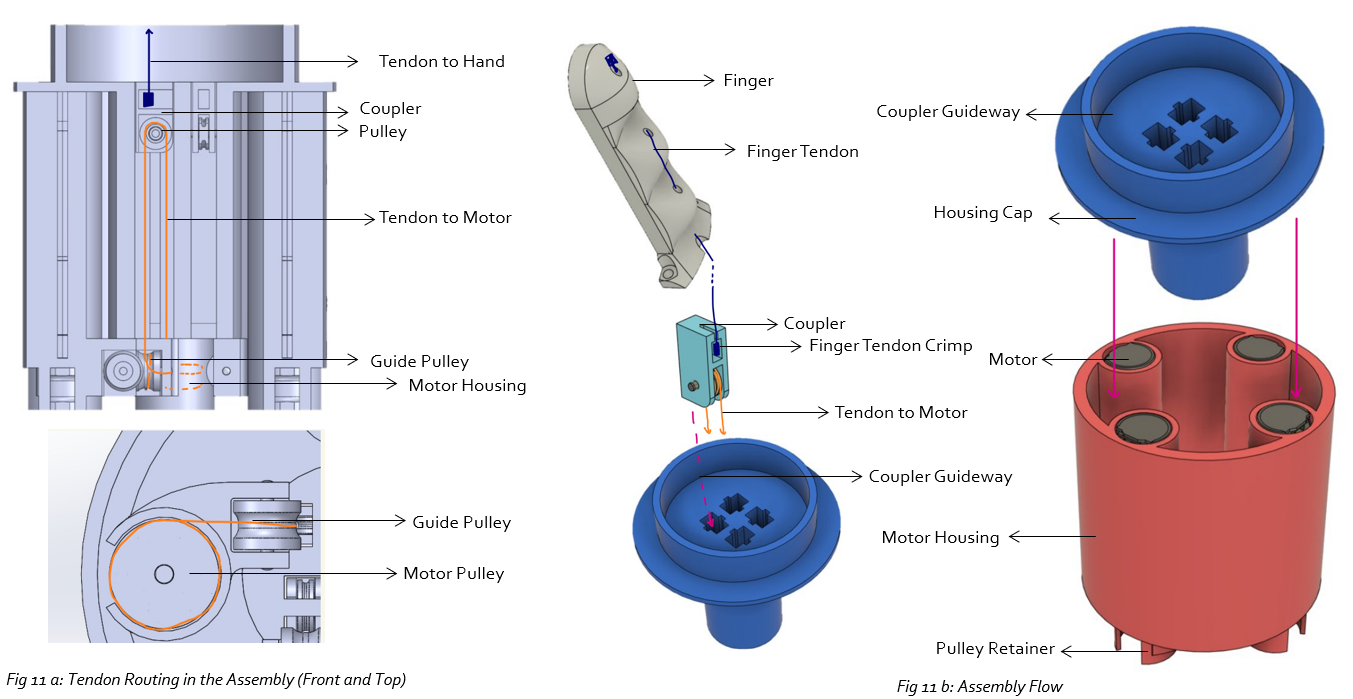

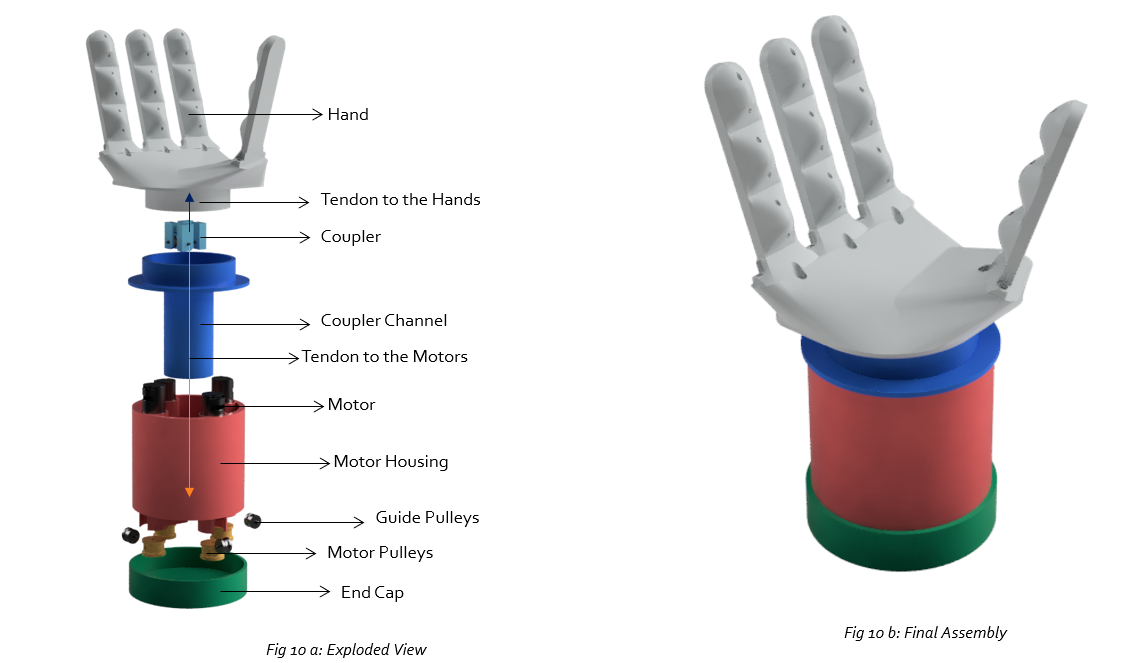

• Integration: 4-motor housing, guide/motor pulleys, coupler guideway, and couplers in a compact inline stack mated to a 3D-printed tendon-driven hand.

Results

• Tendon replacement in ~2 minutes, no actuator disassembly.
• End effectors swap without re-threading tendons or recalibrating motors.
• One actuator module drives multiple hands via a standardized tendon interface — 60–70% of BOM retained across configurations.
• Next: snap-fit/magnetic tendon termination, self-aligning keyed coupler for blind mating, automatic tension take-up → target <30 s one-motion swap.
